A full TypeScript implementation of the BCH virtual machine is now available in
bitcoin-ts, including both standard evaluation and a step-by-step debugging mode. The VM passes Bitcoin ABC’s
script_tests.json test vectors, as well as some additional testing done by
What is Bitcoin Script?
Bitcoin transactions move money from inputs to outputs. For a transaction to be valid, every input must be checked by a “virtual machine” which executes instructions called Bitcoin Script. For more information see the video: Bitcoin Script For Beginners.
Interactive Demo: Using the New VM
The example below fetches a transaction from the blockchain and checks the validity of the first input. At each step, it logs the opcode being executed and the contents of the stack. Click run to see the results.
Inspectable Program State
Because the program state is inspectable at each step, it’s easy to understand what’s happening. Errors are clear and helpful, and the library includes full opcode descriptions, including the new BCH opcodes.
The virtual machine implementation is “stateless” — all methods are pure functions which accept an input and return a new output. Opcodes are also defined as simple functions which accept a program state and return the resulting state. This makes it easier to re-use elements of the codebase when trying new ideas (e.g. prototyping a new opcode).
Universal, Modular, No Dependencies
As with the rest of
bitcoin-ts, the code is fully portable — only universal APIs are used, so the same code runs on both Node.js and browsers. Because the library is fully modular, it can be easily tree-shaken to reduce bundle-size in web applications.
bitcoin-ts also has no dependencies, so it’s easier to audit and maintain.
See it in Action

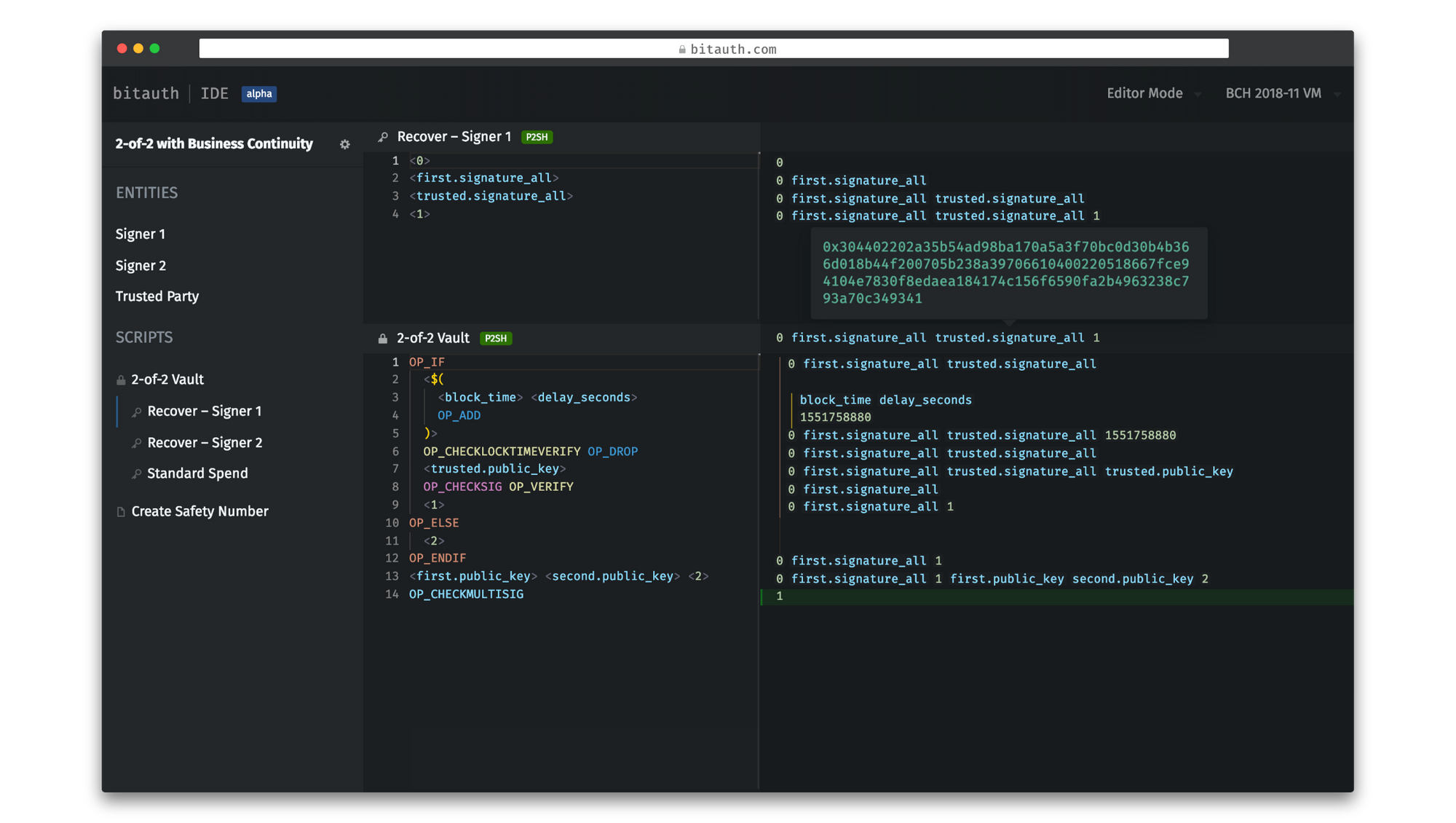

This implementation powers Bitauth IDE, an interactive Bitcoin script editor and debugging environment.
